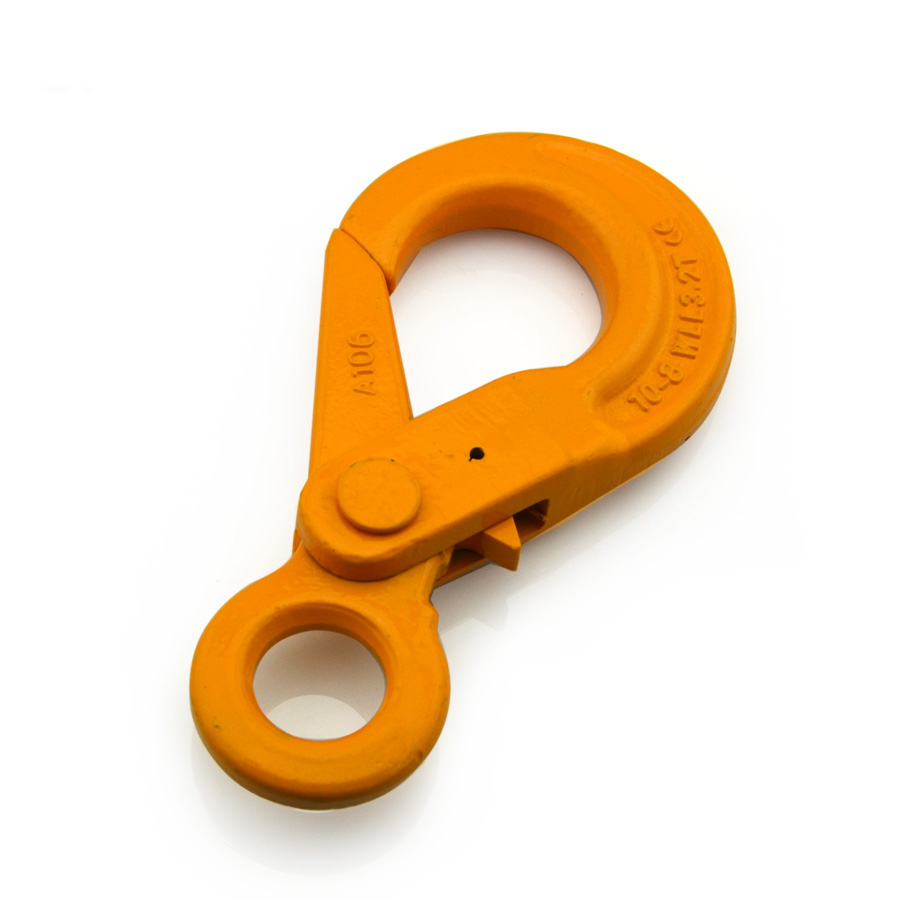

Grade 80 Self Locking Eye Hook

The latch on this hook automatically closes when pulling force is applied to the sling
Designed to be attached directly to a length of chain via a connecting link
Grade 80 alloy steel
4:1 design factor
Tough powder coat finish
Replacement parts always available
Proof tested and certified

Parameter

Grade 80 Self Locking Eye Hook

FOR
CHAIN SIZE
WORKING
LOAD LIMIT (lbs.)
A
(in)
D (in)
G
(in)
H
(in)
O
(in)
R
(in)
T(in)
WEIGHT
(lbs)
7/32″
2,500
1.1
0.43
0.63
0.83
0.83
4.29
1.38
1.12
9/32-5/16″
4,500
1.34
0.47
0.79
1.02
0.98
5.31
1.69
2.06
3/8″
7,100
1.77
0.63
0.98
1.18
1.3
6.61
2.2
3.58
1/2″
12,000
2.01
0.79
1.38
1.57
1.57
8.07
2.72
7.15
5/8″
18,100
2.36
1.06
1.42
1.97
1.97
9.88
3.15
13.31
3/4″
28,300
3.94
1.59
2.25
2.48
2.32
10.83
3.94
18.74

Standards

Name: Grade 80 Self Locking Eye Hook

Package: Carton + Steel Pallet
